800KG Holder Force Access Control Glass Door Lock Low Temperature And Door Status Feedback Electric Bolt Lock

Name: 800KG Holder Force Access Control Glass Door Lock Low Temperature And Door Status Feedback Electric Bolt Lock
Brand: XIMIIR
Price: 1 USD

China 800KG Holder Force Access Control Glass Door Lock Low Temperature And Door Status Feedback Electric Bolt Lock factory

Place of Origin : Guangdong, China (Mainland)

Brand Name : XIMIIR

Model Number : XM-200C

Size : 205Lx35WX40H(mm)

Armature Plate Dimension : 90Lx25Wx2H(mm)

Feature : Fail Safe

Input Voltage : 12

Start Current : 960mA

Standby Current : 130mA

Solid Bolt : Polishing housing, 800Kg Holding Force

Suitable For : Wooden Door,Glass Door,Metal Door,Glass Door

Surface Temp : Low Temperature

Signal Output : Door status Output,NO/COM

Price : Deliberation

MOQ : 1PC

Packaging Details : 1pc/box, 10pcs/carton

Delivery Time : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Payment Terms : L/C D/A D/P T/T Western Union MoneyGram

Supply Ability : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Contact Now

Product Description

Features:

1, Low Temperature, safe & Durable.
2, Low Power, Environmental Protection.
3, Special photoelectricity control,three steps current application.
4, Long Life with 500000 cycles.
5, MOV Provides Reverse Current Protection.
6, Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7, Double protection for loading current.
8, Certificate:CE&MA
9, Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.

Specifications:

Feature	Fail Safe
Face Plate	205Lx35WX40H(mm)
Strike	90Lx25Wx2H(mm)
Input Voltage	12VDC
Start Current	960mA
Standby Current	130mA
Solid Bolt	Polishing housing, 800Kg Holding Force
Suitable For	Wooden Door,Glass Door,Metal Door,Glass Door
Induction Distance	8mm
Signal Output	Door status Output,NO/COM
Surface Temp	Low Temperature
Operating Temp	-10~+55℃(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum/Stainless Steel
Special Designed	Tested to 500000 cycles
Face place material	High Aluminum
Weight	0.7KGS

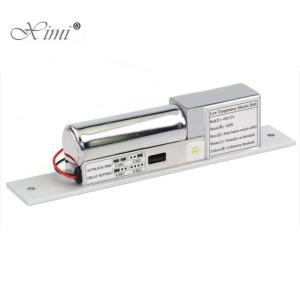

Detailed Images

800KG Holder Force Access Control Glass Door Lock Low Temperature And Door Status Feedback Electric Bolt Lock

magnetic cabinet locks

magnetic gate lock

800KG Holder Force Access Control Glass Door Lock Low Temperature And Door Status Feedback Electric Bolt Lock Images
