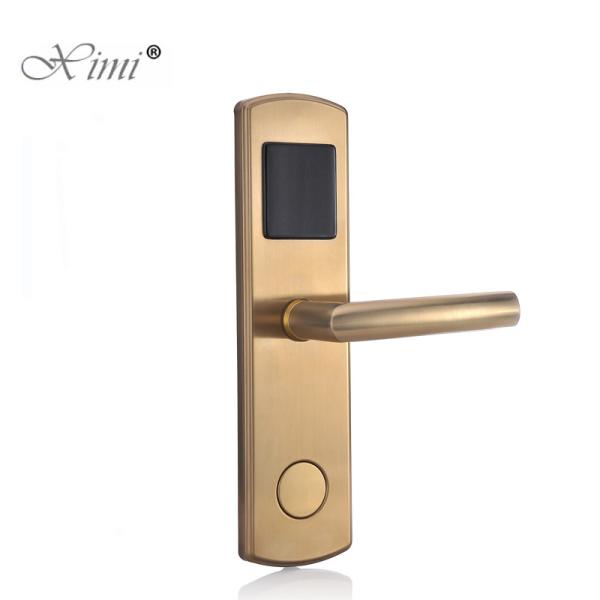

Name: Electronic RFID Hotel Lock Rfid Smart Card Key Hotel Door Lock System RFID
Brand: XIMI, XIMI
Price: 1 USD

Place of Origin : China (Mainland)

Brand Name : XIMI, XIMI

Model Number : HM-203

Price : Deliberation

MOQ : 1PC

Certification : CE, FCC, ROHS

Delivery Time : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Payment Terms : L/C D/A D/P T/T Western Union MoneyGram

Supply Ability : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Packaging Details : 1pc/box, 10pcs/carton

Sensor Frequency : 125HKz(T5557/EM4305/RFID)~13.56MHz(Mifare 1)

Working Voltage : DC 6V(4pcs 1.5V alkaline batteries)

Static current : <15 uA

Size : 270*70(mm)

Door width : 40-50mm

Dynamic Current : <120mA

Color : Gooden, Silver, Red/Green Bronze

Contact Now

Hotel Card Lock Technical paramete
The number of registration cards	Unlimited
Reading Time	<1s
Reading Range	≤3cm
Sensor Frequency	125HKz(T5557/EM4305/RFID)~13.56MHz(Mifare 1)
Working Voltage	DC 6V(4pcs 1.5V alkaline batteries)
Static current	<15 uA
Dynamic Current	<120mA
Low Voltage Alarming	<4.8V(Can be still opened around 200times)
Working Temperature	0°C~80°C
Storage Temperature	-20~85°C
Working Humidity	20%~90%
Storage Humidity	10~95%RH
Read distance	25mm

Hotel Lock System Compositon:

Normally,this system is composed of the bellowing parts:

1) Electronic Lock: To open the door. (Qty=Guest room)

2) Card-reader: To issue/read all kinds of card;

3) Power-saving Switch: To get power with card in guset room. (Qty=Guest room)

4) Cards: To open the lock. Normally, the quantity is 3 times of guest room;

5) Data collector: Collect unlock records. It is helpful for hotel to check the unlock record. Optional by customers;

6) Hotel management software:Hotel door lock management system, free of charge.For setting the program the whole system.

Function of the card you can issued from software and software function
system card	used to program lock,clear lock data
guest card	used to unlock the door for customer,you can set valid time for the card such as one day,two days etc.
floor card	card for staff,after swipe this card on the door,the lock will be normal open, you can open the lock without swiping a card,after swiping a valid card can cancel this function
group card	you can set several different lock to be one group,then a group card can unlock all lock belong to this group
record card	used to lead the unlock record from lock
lost card	if the customer lost his card,but this card is still in valid time,you can issue a lost card and swipe on that door,the lost card will be invalid
terminate card	swipe this card on the lock,all the guest card belong to this lock will be invalid
master card	card for staff,this card can unlock all the lock belong to this system
